Rib Fixation Plate System - Straight Plate & Pre-Shaped Plate
The rib fixation plate system is an orthopedic implant suitable for internal fixation and repair of rib fractures.
Item No :
GOHE003MOQ :
10 PiecesClassification :
Class IIIColor :
No Color / Custom ColorOrigin :
Xiamen, ChinaPayment :
T/T 50% and balance before shipmentLead Time :
Depends on the order circumstancesRib Fixation Plate System - Straight Plate & Pre-Shaped Plate

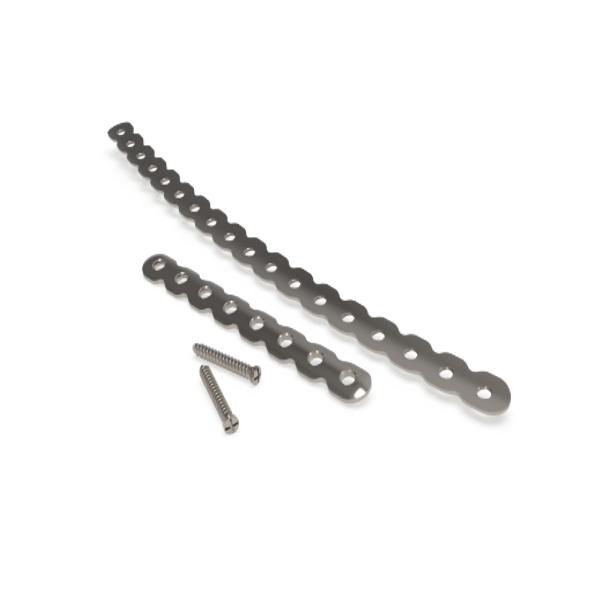

The Rib Fixation Plate System consists of the LG01 type bone plate (straight plate), LG02 type bone plate (pre-shaped plate), and self-tapping locking screws. The rib bone plate and self-tapping locking screws are made of TC20 titanium alloy material that meets the requirements of the GB/T13810-2017 standard. The product surface is either uncolored or treated with colored anodizing, and it is packaged non-sterile.
Rib Plate System Specifications:
- Made of high-quality titanium metal, it has good biocompatibility and reduces the risk of human rejection;
- Equipped with a depth-limited bone drill to effectively prevent over-drilling and ensure surgical safety;
- It can be directly fixed under the muscle and outside the periosteum without stripping the periosteum, maximizing the protection of bone blood supply and promoting healing.
Rib Plate System Specifications:

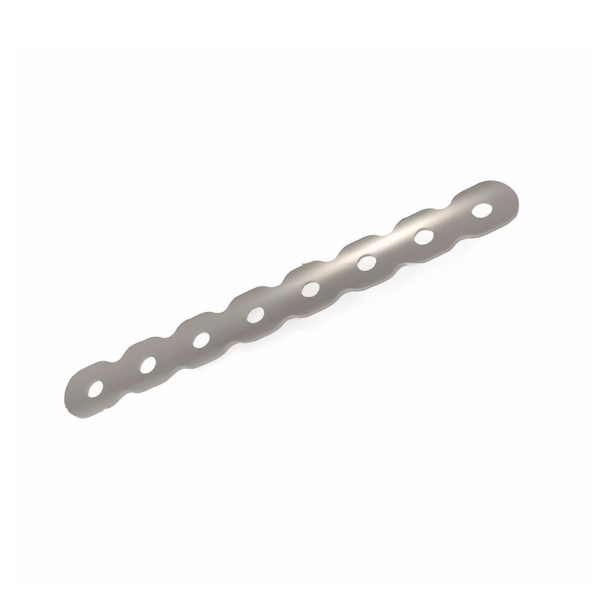

| Rib Fixation Plate LG01 | ||||||
| Type | P/N | Length(mm) | Width(mm) | Thickness(mm) | Hole Number | Fitted Screws |
| LG01 | 005001008 | 81.5 | 9 | 1.5 | 8 | φ2.9 Self-tapping Lock Screw |

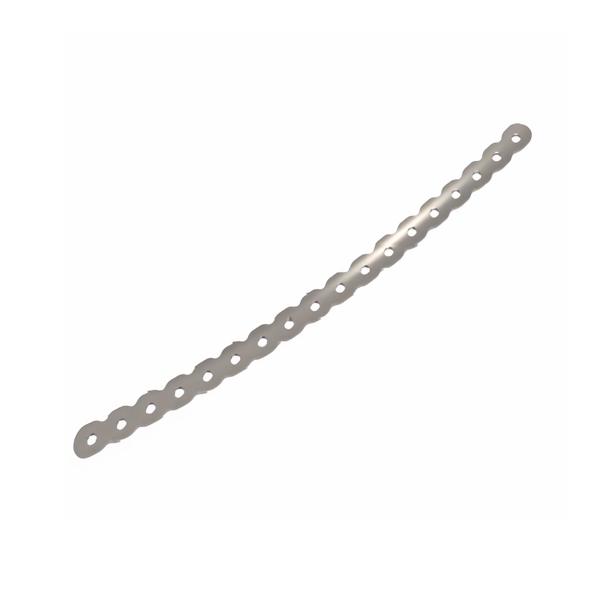

| Rib Fixation Plate LG02 | ||||||
| Type | P/N | Length(mm) | Width(mm) | Thickness(mm) | Hole Number | Fitted Screws |
| LG02 | 005002015 | 155 | 9.5 | 1.5 | 15 | φ2.9 Self-tapping Lock Screw |
| LG02 | 005002016 | 165 | 9.5 | 1.5 | 16 | φ2.9 Self-tapping Lock Screw |
| LG02 | 005002017 | 175 | 9.5 | 1.5 | 17 | φ2.9 Self-tapping Lock Screw |
| LG02 | 005002018 | 185 | 9.5 | 1.5 | 18 | φ2.9 Self-tapping Lock Screw |

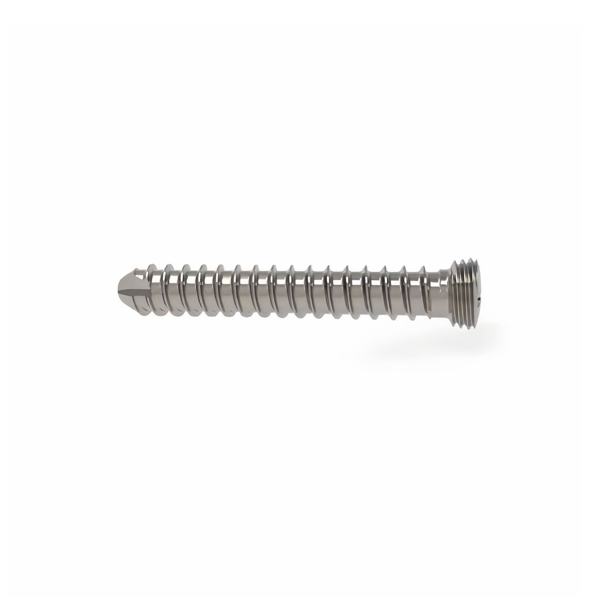

| Self-tapping Lock Screw GS01 | ||||
| Type | P/N | Diameter(mm) | Length(mm) | Fitted Products |
| GS01 | 005003006 | φ2.9 | 6 | Rib Fixation Plate LG01/LG02 |
| GS01 | 005003008 | φ2.9 | 8 | Rib Fixation Plate LG01/LG02 |
| GS01 | 005003010 | φ2.9 | 10 | Rib Fixation Plate LG01/LG02 |
| GS01 | 005003012 | φ2.9 | 12 | Rib Fixation Plate LG01/LG02 |
| GS01 | 005003014 | φ2.9 | 14 | Rib Fixation Plate LG01/LG02 |
| GS01 | 005003016 | φ2.9 | 16 | Rib Fixation Plate LG01/LG02 |
| GS01 | 005003018 | φ2.9 | 18 | Rib Fixation Plate LG01/LG02 |
| GS01 | 005003020 | φ2.9 | 20 | Rib Fixation Plate LG01/LG02 |
